Introducing several commonly used hinges

  Hinges are a common hardware component used in custom wood products. There are many different types of hinges available. Choosing the right one depends on the design requirements and product characteristics. Below are a few commonly used hinges. Of course, these are just the most basic styles. They can be customized with specific colors and shapes.

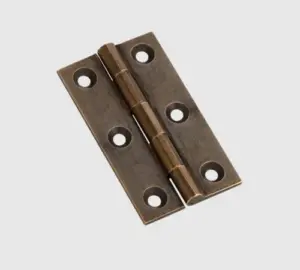

1.Butt Hinge

Features: Simple, traditional hinge consisting of two rectangular leaves joined by a pin. Often made of brass, stainless steel, or steel.

Applications: Commonly used on doors, cabinets, storage boxes and display racks. Offers smooth opening and strong support for medium to heavy loads.

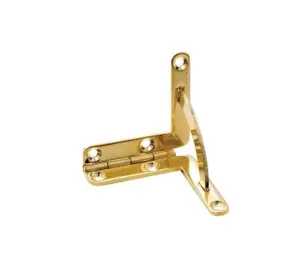

2.Quadrant Hinge

Features: Decorative and functional hinge with a curved arm that limits lid opening to a fixed angle. Usually brass-plated.
Applications: Ideal for jewelry boxes, writing desks, and small chests where controlled lid opening is needed.

3.Self-Supporting Hinge

Features: Built with a mechanism that allows the hinge itself to hold the lid in open position without extra support.
Applications: Frequently used in storage boxes, toy chests, and small cabinets to keep lids open safely.

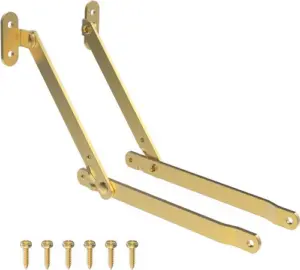

4.Lid Support Folding Hinges

Features: Combines hinge and lid support functions in one piece. Controls the opening angle and supports the lid weight.
Applications: Popular in wooden cases, decorative storage boxes, and small cabinets.

5.Folding Hinge

Features: Designed with multiple knuckles or flexible joints, allowing panels to fold flat or at an angle.
Applications: Used for folding tables, collapsible furniture, or partitions where compact storage is needed.

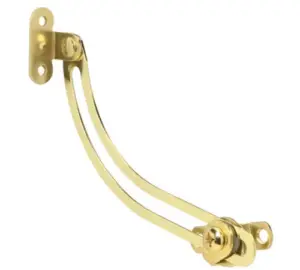

6.Friction Lid Support Hinge

Features: Incorporates adjustable friction, enabling the lid to stay open at any desired angle. Prevents sudden slamming.
Applications: Used in toolboxes, instrument cases, toy chests, and premium storage boxes.

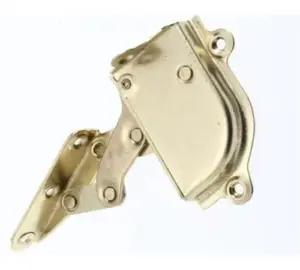

7.Hinge with Built-in Lid Support

Features: Combines decorative brass hinge with integrated support arm, providing both elegance and functionality.
Applications: Premium jewelry boxes, writing desks, and collectible storage cases where both aesthetics and lid support are important.

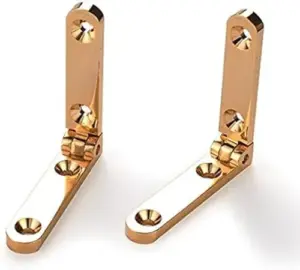

8.L – Shaped -Side Rail Hinge

Features: Long narrow hinge mounted along the side rail for discreet installation. Provides stable pivoting without visible bulky hardware.
Applications: Suitable for slim wooden boxes, writing desks, and cases requiring a flush appearance.

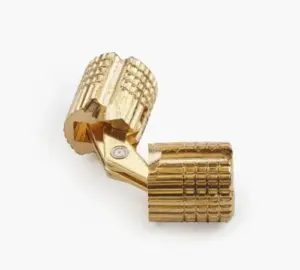

9.Barrel Hinge

Features: Cylindrical hinge that is almost invisible when installed, with only small barrels exposed.
Applications: Common in small cabinets, concealed doors, and boxes where aesthetics and hidden hardware are preferred.

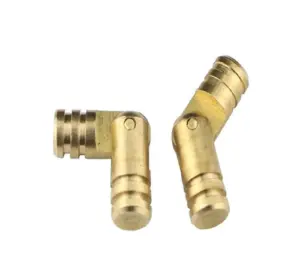

10.Miniature Barrel Hinge

Features: A smaller version of barrel hinge, designed for lightweight lids and compact boxes.
Applications: Used in jewelry boxes, miniature chests, and fine wooden cases requiring hidden hinges.

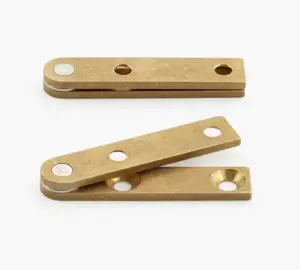

11.Knife Hinge

Features: Flat hinge with pivot resembling a knife blade. Often recessed into wood for a seamless look.
Applications: Used in cabinets, fine furniture, and precision woodwork where a nearly invisible hinge is required.

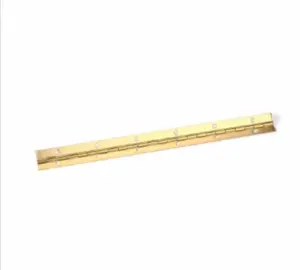

12.Piano Hinge (Continuous Hinge)

Features: A long, continuous hinge running the full length of the lid or door. Provides even weight distribution and smooth pivoting. Strong and stable, often made of brass, stainless steel, or steel. Can be cut to custom lengths.
Applications: Commonly used in piano lids (hence the name), toolboxes, storage chests, cabinets, and doors. Suitable for applications requiring extra strength and durability along the entire edge.

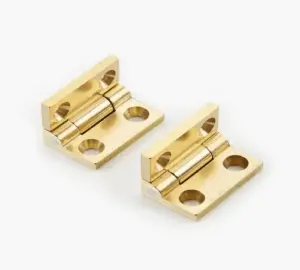

13.Box 90° Stop Hinge

Features: A hinge designed to stop and hold the lid or door securely at a 90-degree opening angle. Prevents the lid from opening beyond 90°, protecting the box and hinge from overextension. Provides stable positioning, making access to contents safe and convenient. Often made of brass, stainless steel, or steel, with decorative or concealed options available.
Applications: Commonly used in wooden boxes, display cases, cabinets, and storage chests. Ideal for applications where a fixed 90° opening is needed, such as presentation boxes, writing desks, or countertop display units.

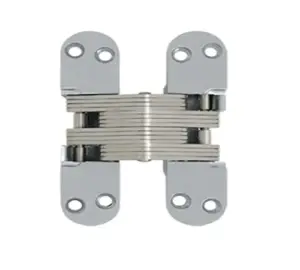

14.Invisible Hinge (Concealed Hinge)

Features: Completely hidden when the lid or door is closed, offering a clean and seamless look. Provides smooth pivoting without visible hardware on the outside. Usually made of brass, stainless steel, or zinc alloy; available in different sizes for light to heavy applications. Can allow doors or lids to open to various angles depending on design.
Applications: Ideal for furniture, jewelry boxes, cabinets, and luxury wooden cases where aesthetics are important. Commonly used in concealed doors, hidden compartments, and modern minimalist designs. Preferred in applications where both functionality and a premium, invisible finish are required.
